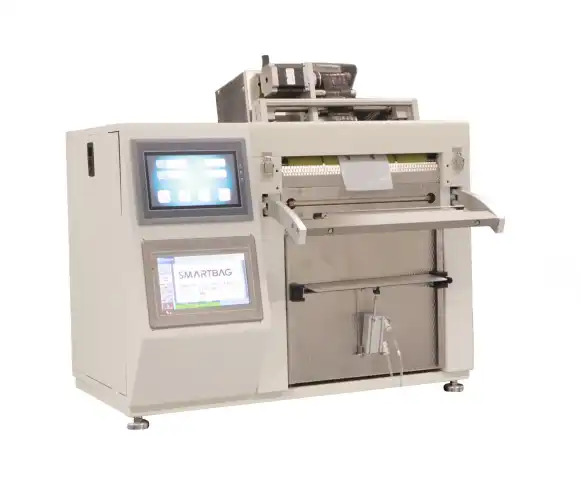

Table Roll AutoBagger FP-A08-2TR

The FHOPE Auto Bag machine is a compact and efficient bagging solution for low- to mid-volume production environments. With speeds of up to 25 bags per minute (15 BPM for OneStep), it can handle a decent volume of bags in a short amount of time. The small footprint and lightweight design make it easy to set up and move around as needed, and the fact that it is all-electric and does not require compressed air to operate can be an attractive feature for businesses looking for a quiet and low-maintenance bagging solution.

The Autobag PS 125 is a user-friendly and ergonomic bagging solution. The user-friendly display that enables easy access to operating parameters, job set-up, job storage, and on-board system diagnostics can make it easy for operators to use and maintain the machine. The unique locking turntable and AutoThread feature can also be helpful for ergonomic handling and quick bag changeover, which can be important considerations for businesses looking to optimize their packaging processes.



    model                                   FP-A08-2TR/FPT-A012-2TR

1 Descrition                              Roll Bag Automatic Printing and Packaging Machine

2 Dimension(L×W×H)mm         483×680×653 / 483×750×653

3 Power                                    AC 120V/220V，60/50Hz 400W

4 Compress Air                         0.7Mpa

5 Bag Width                             6cm to 20cm / 6cm to 30cm

6 Bag Length                           10cm to 40cm

7 Film Thickness                       0.04-0.15mm

8 Efficiency                               20-25 bags / minute

9 Interface                                7" HMI+7"HMI(Chinese/English Manual)

10 Startup Mode                      Foot switch/Start button/Push bar/External sinnal

11 Safety                                  Anti-Hand Pinch

12 External Signal                  Dry Contact, seen at external port agreement

13 Print Area                          53mm x 125mm(SVM 53 C AB)

14 Print Resolution                 12 dots/mm (300dpi) horizontally and vertically

15 Print Communications RS-232(PC), LAN(Ethernet), USB

16 Barcodes                           1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPC-A, UPC-E), 2D Barcodes (Data matrix, QR Code, PDF417, Aztec code), GS-1 Barcodes( GS1-128, GS1-Datamatrix, GS1-Databar barcodes)

17 Compatible software SAYASIS Label Design (Real time date and time, text, counter, logo, shift codes, 1D/2D barcodes, GS-1 barcodes and GS-1 Creation Wizard  support), Windows Printer Driver (32-64 bit), Teklynx Software (Code soft,  Label view, and Label matrix), Emulator support, managing printer via SPPL (Savema Protocol) commands, working with all True-Type fonts (if font doesn’t pre-loaded, it must be imported to printer), Remote display control from PC, .csv file support for database
