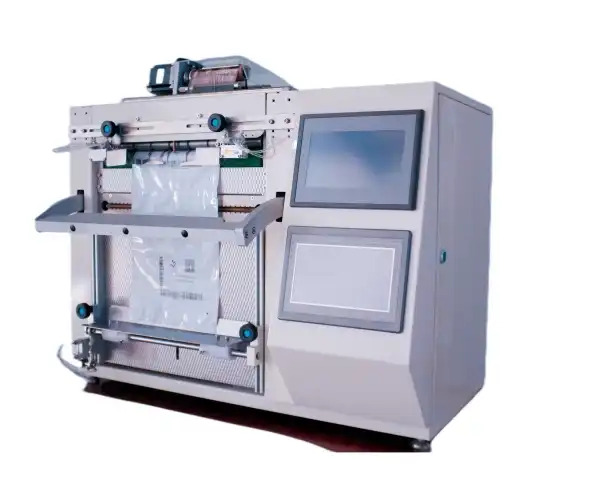

Table Roll AutoBagger FP-A012-4TR

The Autobag machine is compatible with system-matched Autobag bags that are available in convenient sizes for packaging solutions. The fact that these bags can be automatically indexed and loaded by hand, then sealed using the Push-to-Seal automated sealer function, a standard footswitch, or via automatic cycle control can make the bagging process more efficient and convenient.



The auto bagger with a built-in printer is a versatile and efficient packaging solution for a variety of applications. The ability to print high resolution graphics, text, and barcodes directly onto the bag can streamline the fulfillment process and reduce the need for separate labeling operations. The tilt-back print head and optional design software also make it easy to maintain and create custom labels for the bags. This can be particularly useful for businesses that need to package and label a large volume of orders on a regular basis, such as ecommerce companies or pharmacies.



    model                                   FP-A08-2TR/FPT-A012-2TR

1 Descrition                              Roll Bag Automatic Printing and Packaging Machine

2 Dimension(L×W×H)mm         483×750×653

3 Power                                    AC 120V/220V，60/50Hz 400W

4 Compress Air                         0.7Mpa

5 Bag Width                             6cm to 20cm / 6cm to 30cm

6 Bag Length                           10cm to 40cm

7 Film Thickness                       0.04-0.15mm

8 Efficiency                               20-25 bags / minute

9 Interface                                7" HMI+7"HMI(Chinese/English Manual)

10 Startup Mode                      Foot switch/Start button/Push bar/External sinnal

11 Safety                                  Anti-Hand Pinch

12 External Signal                 Dry Contact, seen at external port agreement

13 Print Area                107mm x 250mm(SVM 107 C AB)

14 Print Resolution                 12 dots/mm (300dpi) horizontally and vertically

15 Print Communications RS-232(PC), LAN(Ethernet), USB

16 Barcodes                 1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF                                                 14, UPC-A, UPC-E), 2D Barcodes (Data matrix, QR Code, PDF417, Aztec                                                       code), GS-1 Barcodes( GS1-128, GS1-Datamatrix, GS1-Databar barcodes)

17 Compatible software SAYASIS Label Design (Real time date and time, text, counter, logo, shift                                                      codes, 1D/2D barcodes, GS-1 barcodes and GS-1 Creation Wizard                                                                support), Windows Printer Driver (32-64 bit), Teklynx Software (Code soft,                                                    Label view, and Label matrix), Emulator support, managing printer via                                                          SPPL (Savema Protocol) commands, working with all True-Type fonts (if                                                        font doesn’t pre-loaded, it must be imported to printer), Remote display                                                   control from PC, .csv file support for database
