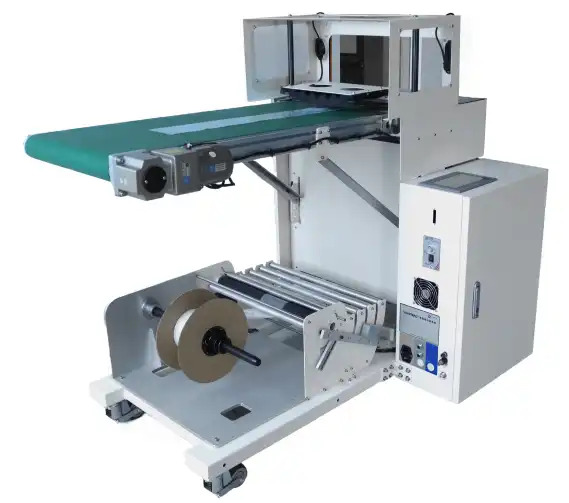

horizontal autobag machine FP-H24

The horizontal autobag machine from FHOPE is a powerful and reliable solution for businesses that need to package large products or a high volume of orders. The ability to handle bags up to 16" wide and the large load area for order prep and bulk product queuing suggest that this machine is well suited for handling a variety of different products and packaging needs. The compact design of the machine is also a valuable feature, as it can help to minimize the amount of floor space required and make the most of available space in the facility. Overall, it seems that the horizontal autobag machine is a reliable and efficient choice for businesses looking to streamline their packaging process and improve the competitiveness of their products.



model

FP-H24

1 Descrition                                     Horizontal Type Roll Bag Packaging Machine 15" Standard

2 Dimension(L×W×H)mm                1400x860x1240

3 Power                                           AC 120V/220V，60/50Hz 400W

4 Compress Air                                 0.7Mpa

5 Bag Width                                     6cm to 40cm

6 Bag Length                                   20cm to100cm

7 Film Thickness                               0.04-0.15mm

8 Efficiency                                      20 bags / minute

9 Interface                                       7" HMIChinese/English Manual

10 Startup Mode                              Foot switch/Start button/Push bar/External sinnal

11 Safety                                          Safety grating

12 External Signal                         Dry Contact, seen at external port definition in detail

13 Print Area                         NA

14 Print Resolution                         NA

15 Print Communications          NA

16 Barcodes                          NA

17 Compatible software           NA
