Ultimate Copper Coil Packing Line

The Ultimate Copper Coil Packing Line represents the pinnacle of copper packaging technology—a completely automated, digitally integrated system that transforms packaging from a manual operation into a strategic competitive advantage. This comprehensive configuration (Coil Car + Turnstile + Coil Downender + Weighing Station + Labeling Station + Coil Strapping + Coil Wrapping + Coil Centering + Coil Stacking + Turntable Station + Pallet Strapping) delivers end-to-end automation from coil receipt to palletized dispatch. Designed for Industry 4.0 factories processing 80,000-200,000+ tons annually, this system operates with minimal human intervention while providing complete digital traceability, real-time analytics, and maximum efficiency.

Component Configuration

Core Components: 1+2+3+4+5+6+7+8+9+10.b+11

1. Coil Car (Component 1) - For automated coil transport
2. Turnstile (Component 2) - For precise coil orientation
3. Coil Downender/Pick Up Machine (Component 3) - For safe coil flipping
4. Coil Weighing Station (Component 4) - For accurate weight measurement
5. Labeling Station (Component 5) - For automatic labeling
6. Coil Strapping Machine (Component 6) - For security strapping
7. Coil Wrapping Machine (Component 7) - For protective wrapping
8. Coil Centering Machine (Component 8) - For perfect alignment
9. Coil Stacking Machine (Component 9) - For organized stacking
10. Coil Stacking Station (Component 10.b) - Turntable station for high throughput
11. Coil Pallet Strapping Machine (Component 11) - For automated pallet strapping

Technical Specifications

Key Features

1. Complete End-to-End Automation

• Material Transport: Automated coil car from production to packaging
• Process Integration: Seamless flow through all 11 components
• Quality Gates: Automated inspection at every stage
• Final Palletization: Complete pallet strapping ready for dispatch

2. Digital Factory Integration

• Real-time Monitoring: Complete visibility of all processes
• Predictive Analytics: AI-driven optimization and maintenance
• Digital Twin: Virtual replica for simulation and optimization
• Cloud Connectivity: Remote monitoring and control capabilities

3. Advanced Traceability System

• Automatic Labeling: RFID and barcode labeling for each coil
• Complete Data Chain: From raw material to finished package
• Blockchain Option: Immutable record keeping available
• Customer Portal: Real-time order tracking for customers

4. Intelligent Process Control

• Self-Optimization: Machine learning improves parameters continuously
• Adaptive Scheduling: Automatic adjustment based on order priorities
• Energy Management: Smart energy optimization across all components
• Quality Prediction: Early warning of potential quality issues

Functional Description

Coil Car (Component 1)

• Primary Function: Automated transport of coils from production to packaging
• Types Available:
  • AGV (Automatic Guided Vehicle): Laser or magnetic guidance
  • Rail-Guided Vehicle: Fixed track system for heavy loads
  • Overhead Crane System: For facilities with height clearance
• Technical Specifications:
  • Load Capacity: 25-120 tons
  • Speed: 0-30 m/min adjustable
  • Navigation: Laser SLAM, magnetic tape, or fixed path
  • Battery: Lithium-ion with opportunity charging
  • Communication: WiFi, 5G, or industrial wireless
• Operation Features:
  • Automatic Loading/Unloading: Integration with production equipment
  • Traffic Management: Multiple vehicles coordinated by central system
  • Safety Systems: Laser scanners, emergency stops, warning signals
  • Maintenance Interface: Self-diagnosis and maintenance scheduling
• Benefits:
  • Eliminates manual transport operations
  • Reduces floor congestion and improves safety
  • Enables just-in-time delivery to packaging line
  • Provides material tracking throughout facility

Turnstile System (Component 2)

• High-Precision Robotic Version: Integration with coil car system
• Features:
  • Automatic coil receipt from coil car
  • Vision system for coil identification
  • Communication with central control system
  • Predictive maintenance capability
• Benefits: Perfect coordination with automated transport, reduced cycle time

Coil Downender/Pick Up Machine (Component 3)

• Robotic Version: 6-axis industrial robot with adaptive gripper
• Features:
  • Force-controlled gentle handling
  • Collision avoidance system
  • Integration with vision system
  • Self-learning path optimization
• Benefits: Maximum flexibility, gentle handling, optimal cycle times

Coil Weighing Station (Component 4)

• Premium Certified Version: Trade-approved weighing system
• Features:
  • Automatic calibration verification
  • Integration with labeling system
  • Blockchain recording option
  • Remote calibration capability
• Benefits: Certified accuracy, complete documentation, regulatory compliance

Labeling Station (Component 5)

• Primary Function: Automatic printing and application of labels
• Core Technology:
  • Printing System: Industrial thermal transfer printer
  • Application Method: Robotic arm or pneumatic applicator
  • Label Types: RFID, barcode, QR code, human-readable
  • Verification System: Camera verification of label application
• Label Information:
  • Mandatory Data: Weight, dimensions, material grade, batch number
  • Optional Data: Customer PO, destination, special instructions
  • Traceability Codes: Unique identifiers for complete traceability
  • Compliance Marks: Regulatory and standards compliance symbols
• Operation Sequence:
  1. Receives data from weighing station
  2. Prints label with all required information
  3. Applies label to predetermined position on coil
  4. Verifies label application and readability
  5. Records application in central database
• Integration Features:
  • ERP/MES Connectivity: Direct integration with business systems
  • Customer Requirements: Configurable to meet specific customer specs
  • Language Support: Multiple languages and character sets
  • Template Management: Library of label templates
• Benefits:
  • Complete traceability from production to customer
  • Elimination of manual labeling errors
  • Compliance with customer and regulatory requirements
  • Real-time inventory and production tracking

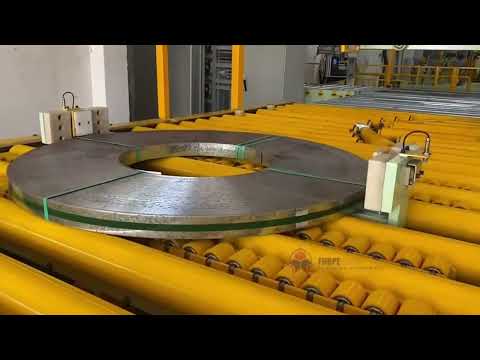

Coil Strapping Machine (Component 6)

• Dual-Head Robotic Version: Maximum speed and flexibility
• Features:
  • Automatic material change between PET and steel
  • Quality verification of every strap
  • Predictive maintenance based on usage
  • Integration with labeling data
• Benefits: Maximum throughput, material flexibility, perfect quality

Coil Wrapping Machine (Component 7)

• Intelligent Multi-material System: AI-controlled wrapping optimization
• Features:
  • Automatic material selection based on product requirements
  • Real-time adjustment based on environmental conditions
  • Defect prediction and prevention
  • Integration with centering system
• Benefits: Optimal material usage, perfect quality, adaptive operation

Coil Centering Machine (Component 8)

• Primary Function: Perfect alignment of coil before stacking
• Core Technology:
  • 3D Vision System: Laser scanning for complete profile
  • Precision Actuators: Servo-controlled positioning system
  • Force Measurement: Contact force monitoring during centering
  • Adaptive Control: Self-adjusting based on coil characteristics
• Alignment Process:
  1. Complete 3D scan of coil position
  2. Calculation of optimal center position
  3. Gentle correction to perfect alignment
  4. Verification of final position
• Accuracy Levels:
  • Standard Accuracy: ±2mm
  • High Precision: ±1mm
  • Ultra Precision: ±0.5mm (special applications)
• Integration Benefits:
  • Perfect Stacking: Enables precise multi-layer stacking
  • Damage Prevention: Eliminates edge damage from misalignment
  • Space Optimization: Maximum density in storage and transport
  • Quality Assurance: Consistent presentation to customers
• Advanced Features:
  • Self-learning: Improves algorithms based on historical data
  • Predictive Alignment: Anticipates corrections based on coil type
  • Maintenance Prediction: Warns of alignment degradation
  • Remote Calibration: Can be calibrated remotely by technicians

Coil Stacking Machine (Component 9)

• Intelligent Robotic System: Automatic selection of stacking method
• Features:
  • Automatic tool changing between forkarm, vacuum, magnet
  • AI-based stacking pattern optimization
  • Integration with centering data
  • Quality verification of each stack
• Benefits: Optimal method selection, perfect stacking, maximum stability

Coil Stacking Station (Component 10.b - Turntable Station)

• Primary Function: High-capacity staging of stacked coils
• Core Technology:
  • Rotating Turntable: 360° continuous rotation capability
  • Multiple Positions: 8-12 pallet positions on turntable
  • Automatic Indexing: Programmable rotation to each position
  • Load Management: Weight and position tracking of all pallets
• Operation Modes:
  • Continuous Mode: Constant rotation for maximum throughput
  • Batch Mode: Group processing of similar coils
  • Quality Mode: Extended dwell time for inspection
  • Maintenance Mode: Easy access for service and cleaning
• Integration Features:
  • Automatic Pallet Handling: Integration with pallet dispenser/retriever
  • Quality Inspection Stations: Multiple inspection points around turntable
  • Buffer Management: Intelligent buffer for production variations
  • Dispatch Coordination: Integration with warehouse management
• Benefits:
  • Maximum throughput capacity
  • Efficient use of floor space
  • Flexible operation modes
  • Easy access for maintenance

Coil Pallet Strapping Machine (Component 11)

• Primary Function: Automatic strapping of complete pallets
• Configuration Options:
  • Fully Automatic: Robotic system for complete automation
  • Semi-automatic: Operator assisted for flexibility
  • Manual Tools: Available but not typically used in this configuration
• Strapping Materials:
  • PET Strapping: 15mm or 19mm width, various colors
  • Steel Strapping: 19mm or 32mm, various coatings
  • Composite Options: Special materials for specific applications
• Strapping Patterns:
  • Standard Pattern: 4 vertical straps + 2 horizontal
  • Reinforced Pattern: 6 vertical + 3 horizontal for heavy loads
  • Export Pattern: Meets international shipping standards
  • Custom Patterns: Customer-specific requirements
• Operation Features:
  • Automatic tension control and monitoring
  • Quality verification of every strap
  • Integration with pallet tracking system
  • Predictive maintenance based on strap count
• Benefits:
  • Complete pallet security for transport
  • Compliance with shipping regulations
  • Reduced manual labor
  • Consistent quality and appearance

Digital Factory Integration

Central Control System

• Edge Computing Platform: Local processing for real-time control
• Cloud Connectivity: Data aggregation and advanced analytics
• Digital Twin: Virtual model for simulation and optimization
• API Ecosystem: Open interfaces for system integration

Data Analytics & AI

• Predictive Maintenance: Early warning of component issues
• Process Optimization: Continuous improvement of all parameters
• Quality Prediction: Anticipate and prevent quality issues
• Energy Optimization: Smart management of energy consumption

Traceability & Documentation

• Complete Data Chain: From raw material to customer delivery
• Blockchain Option: Immutable records for premium customers
• Real-time Reporting: Dashboards and automated reports
• Customer Portal: Order tracking and documentation access

Application Scenarios

Ideal Customer Profile

• Company Size: Very large copper processors (80,000-200,000+ tons/year)
• Automation Level: Already implementing Industry 4.0 initiatives
• Digital Maturity: Advanced IT infrastructure and data culture
• Market Position: Competing in premium global markets
• Investment Capacity: $1,200,000-$2,500,000 USD
• Primary Goals: Maximum automation, complete traceability, data-driven optimization

Suitable Industries

1. Global Copper Conglomerates: Multiple facilities requiring standardization
2. Premium Product Specialists: High-value copper for critical applications
3. Smart Factory Pioneers: Implementing comprehensive digital transformation
4. Export Powerhouses: Shipping to the most demanding international markets

Typical Installation Environment

• Production Volume: 80,000-150,000 tons annually
• Automation Level: Already significant automation in production
• IT Infrastructure: Robust network, data systems, security
• Workforce Skills: Technicians comfortable with advanced systems
• Management Approach: Data-driven decision making culture

Performance Metrics

Investment Analysis

Capital Investment

• Equipment Cost: $1,300,000-$2,200,000 USD
• Installation & Commissioning: $100,000-$200,000 USD
• Digital Infrastructure: $50,000-$100,000 USD
• Training & Change Management: $75,000-$150,000 USD
• Spare Parts & Support: $50,000-$100,000 USD
• Total Investment: $1,575,000-$2,750,000 USD

Operating Cost Analysis

• Annual Labor Cost: $60,000-$100,000 (1-2 highly skilled persons)
• Material Cost: $120,000-$250,000 (optimized usage)
• Maintenance Cost: $20,000-$40,000 (predictive reduces downtime)
• Energy Cost: $25,000-$50,000 (optimized consumption)
• Software & Support: $30,000-$60,000 (digital services)
• Total Annual Operating Cost: $255,000-$500,000

Value Creation & Strategic Benefits

• Labor Savings: $200,000-$400,000 per year
• Quality Improvement: $150,000-$300,000 (reduced claims, premium pricing)
• Efficiency Gains: $100,000-$200,000 (throughput increase)
• Material Optimization: $40,000-$80,000 (reduced waste)
• Energy Savings: $15,000-$30,000 (optimized consumption)
• Strategic Value: $300,000-$600,000 (market positioning, customer retention)
• Data Value: $100,000-$200,000 (optimization, prediction, planning)
• Total Annual Value: $905,000-$1,810,000

Return on Investment

• Payback Period: 30-36 months
• 3-Year Net Value: $1,950,000-$3,930,000
• 5-Year Net Value: $3,250,000-$6,550,000
• Strategic ROI: Beyond financial (competitive advantage, market positioning)

Competitive Advantages

vs Traditional Systems

• Complete Automation: Minimal human intervention required
• Digital Integration: Seamless connection to business systems
• Data-Driven Optimization: Continuous improvement through analytics
• Future-Proof Design: Ready for evolving Industry 4.0 requirements

vs Partial Automation

• End-to-End Solution: Complete process automation
• System Integration: Perfect coordination of all components
• Data Consistency: Single source of truth across entire process
• Scalability: Designed for growth and expansion

vs Competitor Systems

• Comprehensive Scope: Most complete system available
• Digital Maturity: Advanced AI and analytics capabilities
• Flexibility: Adaptable to changing requirements
• Support Ecosystem: Complete digital and physical support

Implementation & Transformation

Phased Implementation Approach

1. Phase 1 (Months 1-3): Foundation - Infrastructure and core components
2. Phase 2 (Months 4-6): Integration - System connectivity and testing
3. Phase 3 (Months 7-9): Optimization - Fine-tuning and performance validation
4. Phase 4 (Months 10-12): Transformation - Full digital integration and analytics

Change Management

• Workforce Transformation: Upskilling for digital operations
• Process Redesign: Aligning with automated workflows
• Management Evolution: Data-driven decision making culture
• Continuous Improvement: Embedded optimization mindset

Digital Transformation Components

• Technology Implementation: Hardware, software, connectivity
• Process Redesign: Optimized for automation and data flow
• Organization Change: New roles, skills, responsibilities
• Culture Evolution: Embracing data and continuous improvement

Future-Proof Design

Modular Architecture

• Scalable Design: Additional capacity as production grows
• Technology Upgrades: Easy integration of new technologies
• Functional Expansion: Adding new capabilities over time
• System Evolution: Continuous improvement through updates

Open Standards & Integration

• Communication Protocols: Support for all major standards
• API Access: Full API for custom integration and extension
• Data Accessibility: Open data access for analytics and reporting
• Ecosystem Integration: Designed for partner and customer integration

Cybersecurity & Resilience

• Industrial Security: IEC 62443 compliant architecture
• Network Protection: Segmented networks with monitored access
• Data Security: Encryption, access control, audit trails
• System Resilience: Redundant systems and disaster recovery

Why This System Represents the Future

The Ultimate Copper Coil Packing Line is not merely a collection of equipment—it's a complete transformation of the packaging function from a cost center to a strategic competitive advantage. For forward-thinking copper producers, this investment delivers:

1. Maximum Efficiency: Through complete automation and optimization
2. Perfect Quality: Through precision control and verification at every step
3. Complete Traceability: Through digital documentation and tracking
4. Data-Driven Decisions: Through real-time analytics and insights
5. Future Readiness: Through modular, upgradable design
6. Competitive Advantage: Through differentiation in quality and capability

This system positions your company at the forefront of copper processing technology, ready to meet the challenges of global competition while maximizing efficiency, quality, and profitability.
