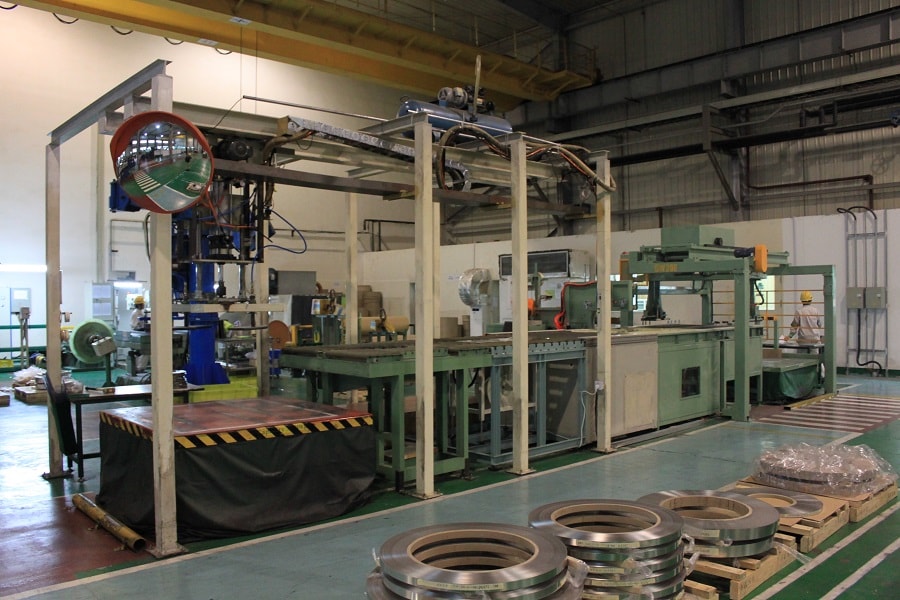

Automatic Copper Coil Packing Line

The Economy Copper Coil Packing Line is designed for small to medium-sized copper processing facilities seeking to automate their most labor-intensive and risky operations: coil handling and stacking. This cost-effective configuration (Turnstile + Coil Downender + Coil Centering + Coil Stacking) addresses the core challenges of manual coil manipulation while keeping investment minimal. By automating these critical steps, facilities can reduce labor requirements by 60-70%, improve safety dramatically, and increase overall throughput by 200-300%.

Component Configuration

Core Components: 2+3+8+9

1. Turnstile (Component 2) - For precise coil orientation

2. Coil Downender/Pick Up Machine (Component 3) - For safe coil flipping

3. Coil Centering Machine (Component 8) - For accurate positioning

4. Coil Stacking Machine (Component 9) - For organized stacking

Technical Specifications

Key Features

1. Cost-Effective Automation

• Minimal Investment: Focuses on automating the most labor-intensive tasks

• Quick ROI: Typically 6-9 months through labor reduction

• Low Operating Costs: Energy-efficient design, minimal maintenance

• Scalable Design: Can be upgraded with additional components later

2. Safety-First Design

• Eliminates Manual Handling: No more risky manual coil flipping

• Protected Operations: All moving parts fully guarded

• Emergency Systems: Multiple emergency stop buttons

• Operator Training: Comprehensive safety training included

3. Space-Efficient Layout

• Compact Footprint: Designed for facilities with limited space

• Flexible Configuration: Can be arranged in L-shape or straight line

• Easy Integration: Minimal disruption to existing operations

• Future Expansion: Space预留 for additional components

4. User-Friendly Operation

• Simple Interface: Intuitive touchscreen controls

• Quick Changeover: <15 minutes between different coil sizes

• Minimal Training: Operators can be trained in 1-2 days

• Troubleshooting Guides: Clear diagnostic displays

Functional Description

Turnstile System (Component 2)

• Primary Function: Receives coils from production line and rotates them to correct orientation

• Operation: Servo-controlled rotation with precise positioning

• Benefits:

• Eliminates manual turning (saves 1-2 workers)

• Ensures consistent orientation for downstream processes

• Reduces required turning space by 40%

Coil Downender/Pick Up Machine (Component 3)

• Primary Function: Safely flips vertical coils to horizontal position

• Operation: Hydraulic system with synchronized cylinders

• Safety Features:

• Dual locking mechanism prevents accidental drops

• Load sensors detect improper loading

• Emergency retract function

• Benefits:

• Eliminates dangerous manual flipping

• Prevents coil damage during handling

• Consistent flipping time regardless of operator fatigue

Coil Centering Machine (Component 8)

• Primary Function: Automatically centers coil to precise position

• Technology: Laser measurement system with hydraulic pushers

• Operation:

• Measures coil position upon arrival

• Calculates required adjustment

• Gently pushes coil to center position

• Benefits:

• Ensures perfect alignment for stacking

• Compensates for variations in incoming coil position

• Reduces stacking errors and misalignment

Coil Stacking Machine (Component 9)

• Primary Function: Stacks coils in organized patterns

• Standard Configuration: Forkarm Stacking

• Optional Configurations:

• Vacuum Stacking: For polished or sensitive surfaces

• Magnet Stacking: For heavy coils (>15 tons)

• Stacking Patterns:

• Single-layer patterns

• Two-layer pyramid patterns

• Three-layer patterns (with stability analysis)

• Benefits:

• Replaces 2-3 manual stackers

• Consistent stacking quality

• Optimized use of floor space

Application Scenarios

Ideal Customer Profile

• Company Size: Small to medium copper processors (5,000-20,000 tons/year)

• Current Situation: Reliant on manual handling, experiencing:

• High labor costs

• Safety incidents

• Inconsistent stacking quality

• Limited production capacity

• Investment Capacity: $100,000-$200,000 USD

• Primary Goal: Reduce labor dependency and improve safety

Suitable Industries

1. Small Copper Tube Manufacturers: Packaging tubes for construction industry

2. Copper Wire Producers: Handling wire coils for electrical applications

3. Local Copper Distributors: Processing coils for regional distribution

4. Start-up Copper Processors: Establishing first automated packaging line

Typical Installation

• Production Volume: 5,000-15,000 tons annually

• Shift Pattern: 1-2 shifts per day, 5-6 days per week

• Labor Before: 4-6 persons for handling and stacking

• Labor After: 1-2 persons for supervision and maintenance

• Space Available: Limited floor space, often in existing buildings

Performance Metrics

Investment Analysis

Capital Investment

• Equipment Cost: $120,000-$180,000 USD

• Installation: $10,000-$20,000 USD

• Training: Included in package

• Total Investment: $130,000-$200,000 USD

Operating Cost Savings

• Labor Savings: $60,000-$100,000 per year (2-4 persons)

• Damage Reduction: $5,000-$15,000 per year

• Efficiency Gains: $20,000-$40,000 per year

• Total Annual Savings: $85,000-$155,000

Return on Investment

• Payback Period: 6-12 months

• 3-Year Savings: $255,000-$465,000

• 5-Year Savings: $425,000-$775,000

Why Choose This Solution?

For Companies That:

1. Have Limited Budgets but need to automate

2. Experience High Labor Turnover in manual positions

3. Have Safety Concerns with current manual handling

4. Need to Increase Capacity without major expansion

5. Want to Start Small with option to expand later

Key Benefits:

• Fast Implementation: Installation in 2-3 weeks

• Minimal Disruption: Can be installed during normal operations

• Proven Technology: Based on 15 years of FHOPEPACK experience

• Local Support: Service and parts available regionally

• Upgrade Path: Can add wrapping, strapping, etc. later

Limitations & Considerations

What This System Does NOT Include:

• No wrapping or protective packaging

• No strapping for transport security

• No automated weighing or labeling

• No pallet handling capabilities

When to Consider Upgrading:

1. When export requirements demand protective packaging

2. When production volume exceeds 15,000 tons/year

3. When customer specifications require specific packaging

4. When labor costs continue to rise significantly

Next Steps

Evaluation Checklist:

• [ ] Current manual handling process analysis

• [ ] Available floor space measurement

• [ ] Coil size and weight range assessment

• [ ] Production volume and growth projections

• [ ] Budget allocation confirmation

Implementation Timeline:

1. Week 1-2: Site survey and final design

2. Week 3-4: Equipment fabrication

3. Week 5: Delivery and installation

4. Week 6: Commissioning and testing

5. Week 7: Operator training

6. Week 8: Full production operation
