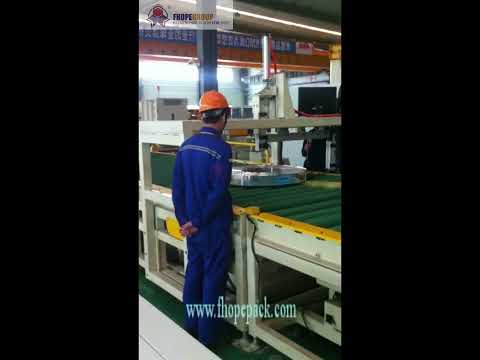

Premium Copper Coil Packing Line

The Premium Copper Coil Packing Line represents the ultimate solution for copper processors requiring not only secure packaging but also comprehensive quality control and enhanced protection for high-value products. This advanced configuration (Turnstile + Coil Downender + Weighing Station + Coil Strapping + Coil Wrapping + Coil Stacking + Stacking Station + Timber Feeder) integrates precision weighing, secure strapping, protective wrapping, and timber block placement to create a packaging system that exceeds industry standards. Designed for facilities processing 50,000-120,000 tons annually with significant export volume to demanding markets, this system ensures every coil is packaged to perfection with complete documentation and maximum protection.

Component Configuration

Core Components: 2+3+4+6+7+9+10+12

1. Turnstile (Component 2) - For precise coil orientation
2. Coil Downender/Pick Up Machine (Component 3) - For safe coil flipping
3. Coil Weighing Station (Component 4) - For accurate weight measurement
4. Coil Strapping Machine (Component 6) - For security strapping
5. Coil Wrapping Machine (Component 7) - For protective wrapping
6. Coil Stacking Machine (Component 9) - For organized stacking
7. Coil Stacking Station (Component 10) - For final staging
8. Timber Feeder (Component 12) - For timber block placement between coils

Technical Specifications

Key Features

1. Complete Quality Assurance

• Precision Weighing: Certified accuracy for commercial transactions
• Documentation: Automatic generation of weight certificates
• Traceability: Complete data recording for each coil
• Compliance: Meets international trade and quality standards

2. Enhanced Protection System

• Triple-Layer Protection: Strapping + Wrapping + Timber blocks
• Damage Prevention: Maximum protection against transport hazards
• Moisture Barrier: Optional moisture-resistant materials
• Custom Configuration: Tailored to specific product requirements

3. Intelligent Timber Block Placement

• Automatic Feeding: Precise placement between coil layers
• Size Options: Standard and custom timber sizes
• Pattern Control: Programmable placement patterns
• Material Options: Hardwood, softwood, or synthetic blocks

4. Advanced Process Control

• Integrated Quality Gates: Multiple checkpoints throughout process
• Real-time Monitoring: Continuous quality parameter tracking
• Automatic Adjustment: Self-optimizing based on product characteristics
• Comprehensive Reporting: Detailed production and quality reports

Functional Description

Turnstile System (Component 2)

• High-Precision Version: Enhanced for weighing station integration
• Features:
  • Vibration damping for accurate weighing
  • Load cell compatibility
  • Precision positioning for timber placement
• Benefits: Ensures accurate weighing, perfect alignment for downstream processes

Coil Downender/Pick Up Machine (Component 3)

• Heavy-Duty Version: Rated for continuous high-volume operation
• Features:
  • Smooth acceleration/deceleration profiles
  • Enhanced position repeatability
  • Integration with weighing system
• Benefits: Consistent handling, reduced product variation, accurate weighing preparation

Coil Weighing Station (Component 4)

• Primary Function: Precisely measure and record coil weight
• Core Technology:
  • Load Cells: High-precision strain gauge load cells
  • Weighing Platform: Sturdy construction with vibration isolation
  • Display System: Local display with remote data transmission
  • Calibration: Automatic or manual calibration capabilities
• Weighing Process:
  1. Coil enters weighing station
  2. System stabilizes and isolates from vibrations
  3. Weight measurement taken with multiple samples
  4. Data verified and recorded
  5. Certificate generated automatically
• Accuracy Specifications:
  • Standard Accuracy: ±0.1% of reading
  • High Accuracy Option: ±0.05% of reading
  • Repeatability: ±0.05% under identical conditions
  • Resolution: 0.1kg or better
• Data Management:
  • Automatic Recording: Weight, time, coil ID
  • Certificate Generation: Commercial weight certificates
  • Data Export: CSV, PDF, direct system integration
  • Compliance: Meets trade and quality standards
• Benefits:
  • Accurate commercial transactions
  • Quality control documentation
  • Process optimization data
  • Regulatory compliance

Coil Strapping Machine (Component 6)

• Enhanced Version: Higher precision and reliability
• Features:
  • Dual-head option for faster strapping
  • Advanced tension control with feedback
  • Quality verification of each strap
  • Integration with weighing data
• Benefits: Faster operation, perfect tension control, quality assurance

Coil Wrapping Machine (Component 7)

• Premium Version: Multi-material capability
• Features:
  • Dual-material simultaneous application
  • Intelligent pattern generation
  • Automatic defect detection and correction
  • Integration with timber feeder
• Benefits: Enhanced protection, material efficiency, perfect quality

Coil Stacking Machine (Component 9)

• Primary Function: Stack protected coils with timber blocks
• Enhanced Features:
  • Timber block awareness in stacking pattern
  • Enhanced stability calculation
  • Integration with timber feeder timing
  • Quality verification of stacked configuration
• Benefits: Safe stacking with timber, optimized patterns, reduced damage

Coil Stacking Station (Component 10)

• Standard: Conveyor Station (10.a) with enhanced features
• Option: Turntable Station (10.b) for maximum throughput
• Features:
  • Quality inspection points
  • Final verification stations
  • Integration with warehouse systems
  • Buffer capacity for quality checks
• Benefits: Efficient flow, quality assurance, system integration

Timber Feeder (Component 12)

• Primary Function: Automatically place timber blocks between coil layers
• Core Technology:
  • Timber Magazine: Holds 50-200 timber blocks
  • Feeding Mechanism: Pneumatic or mechanical feeding
  • Positioning System: Precise placement control
  • Empty Detection: Automatic notification when low
• Timber Options:
  • Standard Hardwood: 100×100×500mm
  • Custom Sizes: Various dimensions available
  • Material Choices: Hardwood, softwood, synthetic
  • Treatment Options: Preservative treated, fire retardant
• Placement Patterns:
  • Standard Pattern: 4 blocks per layer (corners)
  • Enhanced Pattern: 6-8 blocks for heavy coils
  • Custom Patterns: Tailored to specific requirements
  • Automatic Adjustment: Based on coil size and weight
• Operation Sequence:
  1. Coil positioned for timber placement
  2. Required number of blocks fed from magazine
  3. Blocks precisely positioned on coil surface
  4. Next coil placed on top of blocks
  5. Process repeats for additional layers
• Benefits:
  • Prevents coil-to-coil contact and damage
  • Allows forklift entry for handling
  • Improves stack stability
  • Meets customer packaging specifications

Application Scenarios

Ideal Customer Profile

• Company Size: Large copper processors (50,000-120,000 tons/year)
• Product Value: High-value copper products (premium alloys, specialty materials)
• Export Markets: Demanding international markets with strict requirements
• Current Situation: Using multiple separate systems, experiencing:
  • Inconsistent quality documentation
  • Damage during international shipping
  • Difficulty meeting customer specifications
  • High manual labor for timber placement
• Investment Capacity: $600,000-$900,000 USD
• Primary Goal: Premium packaging with complete quality assurance

Suitable Industries

1. Premium Copper Alloy Producers: Supplying aerospace and defense
2. High-Purity Copper Manufacturers: For electronics and medical applications
3. Export-Focused Mills: Shipping to quality-conscious markets
4. Specialty Product Processors: Unique materials requiring special handling

Typical Installation

• Production Volume: 50,000-100,000 tons annually
• Export Percentage: 60-80% requiring premium packaging
• Customer Requirements: Strict packaging and documentation specs
• Quality Standards: ISO, ASTM, customer-specific, regulatory
• Shipping Methods: International sea, intermodal, specialized transport

Performance Metrics

Investment Analysis

Capital Investment

• Equipment Cost: $650,000-$850,000 USD
• Installation & Commissioning: $40,000-$60,000 USD
• Training & Documentation: Comprehensive package included
• Spare Parts Kit: $15,000-$25,000 USD
• Certification & Calibration: $10,000-$15,000 USD
• Total Investment: $715,000-$950,000 USD

Operating Cost Analysis

• Annual Labor Cost: $80,000-$120,000 (2-3 skilled technicians)
• Material Cost: $80,000-$150,000 (film, strapping, timber)
• Maintenance Cost: $12,000-$20,000
• Calibration & Certification: $5,000-$10,000
• Energy Cost: $15,000-$25,000
• Total Annual Operating Cost: $192,000-$325,000

Value Creation & Cost Savings

• Damage Reduction: $50,000-$100,000 per year
• Labor Savings: $60,000-$100,000 vs manual systems
• Material Efficiency: $20,000-$40,000 through optimization
• Quality Premium: $100,000-$200,000 (market positioning)
• Customer Retention: $80,000-$150,000 (reduced complaints/returns)
• Insurance Savings: $25,000-$50,000
• Total Annual Value: $335,000-$640,000

Return on Investment

• Payback Period: 24-30 months
• 3-Year Net Value: $805,000-$1,530,000
• 5-Year Net Value: $1,475,000-$2,825,000

Competitive Advantages

vs Standard Packaging Systems

• Added Value: Certified weighing and documentation
• Enhanced Protection: Timber block system for premium protection
• Quality Assurance: Comprehensive quality control throughout
• Market Positioning: Qualifies for most demanding customers

vs Manual/Partial Systems

• Consistency: Every coil processed identically
• Efficiency: Significant labor reduction
• Accuracy: Precision weighing and placement
• Documentation: Complete automated records

vs Competitor Premium Systems

• Integration: Seamless coordination of all components
• Flexibility: Multiple material and configuration options
• Reliability: Designed for continuous high-volume operation
• Support: Complete service and training package

Limitations & Future Expansion

Current System Limitations

• No automated labeling capability
• Limited to standard conveyor stacking station
• No pallet handling or wrapping
• No coil car for automated transport

Available Upgrades

1. Add Labeling Station (Component 5): For complete traceability
2. Upgrade to Turntable Station (10.b): For maximum throughput
3. Add Coil Car (Component 1): For automated material transport
4. Add Pallet Handling (Components 11+13): For complete palletization
5. Add Centering Machine (Component 8): For perfect alignment

When to Consider Upgrading to Next Level

1. When full traceability with labeling becomes critical
2. When production exceeds 80,000 tons/year
3. When complete palletization is required
4. When automated material transport is needed
5. When maximum precision alignment is essential

Implementation Considerations

Site Requirements

• Floor Space: Minimum 16m × 8m (128㎡)
• Floor Loading: 10 tons/m² for heavy coils and equipment
• Power Supply: 380V/50Hz, 200A circuit with clean power
• Compressed Air: 0.7-0.9MPa, 400L/min capacity with dryer
• Environmental Control: Temperature and humidity stability for weighing
• Lighting: Excellent for quality inspection areas
• Access: For maintenance and timber delivery

Installation Timeline

1. Week 1-4: Comprehensive engineering and site preparation
2. Week 5-10: Equipment fabrication and factory acceptance testing
3. Week 11: Delivery and site readiness verification
4. Week 12-13: Mechanical installation and alignment
5. Week 14: Electrical and control system installation
6. Week 15: Commissioning and performance testing
7. Week 16: Calibration and certification
8. Week 17: Extensive training programs
9. Week 18: Full production with quality verification

Training Program

• Operators: 7 days comprehensive training
• Maintenance Team: 5 days technical training
• Quality Control: 3 days inspection and documentation
• Supervisors: 3 days system management
• Management: 1 day strategic overview
• Documentation: Complete set with local language support

Quality Assurance & Compliance

Process Controls

• Weighing System Calibration: Regular traceable calibration
• Strapping Tension Verification: Continuous monitoring
• Wrapping Quality Inspection: Automatic and manual checks
• Timber Placement Verification: Position accuracy confirmation
• Stacking Stability Analysis: Computer-aided verification

Documentation System

• Automatic Certificates: Weight certificates for each coil
• Process Records: Complete parameter recording
• Quality Reports: Daily, weekly, monthly summaries
• Maintenance Logs: Comprehensive equipment history
• Compliance Documentation: Regulatory and standards compliance

Standards Compliance

• Weighing Standards: OIML, NTEP, Measurement Canada
• Packaging Standards: ISO, ASTM, customer specifications
• Safety Standards: CE, ISO 13849, local regulations
• Quality Standards: ISO 9001, industry-specific requirements

Customer-Specific Requirements

• Custom Documentation: Tailored certificates and reports
• Specific Packaging: Meeting exact customer specifications
• Traceability Systems: Integration with customer systems
• Audit Support: Preparation for customer audits
